Xiaoxin Star Tracking Equatorial Mount-Astrophotography Rotating Head with Automatic Shutter Control

Xiaoxin Star Tracking Equatorial Mount-Astrophotography Rotating Head with Automatic Shutter Control (Bluetooth Edition)

Product Information:

Xiaoxin Star Tracking (Bluetooth Edition) equatorial mount and rotating head for astrophotography. Heavy-duty aluminum construction supports 5 kg payloads, offers Bluetooth app control, automatic shutter, and accurate north/south hemisphere tracking for long-exposure night-sky imaging.

.Heavy-Duty All-Metal Build: Precision-milled 2 mm aluminum housing (5 × 5 × 10 cm) with stainless-steel frame and output shaft supports cameras and lenses up to 5 kg; for loads above 5 kg use the included 52 mm balance wheel and 35 mm counterweight for perfect stability.

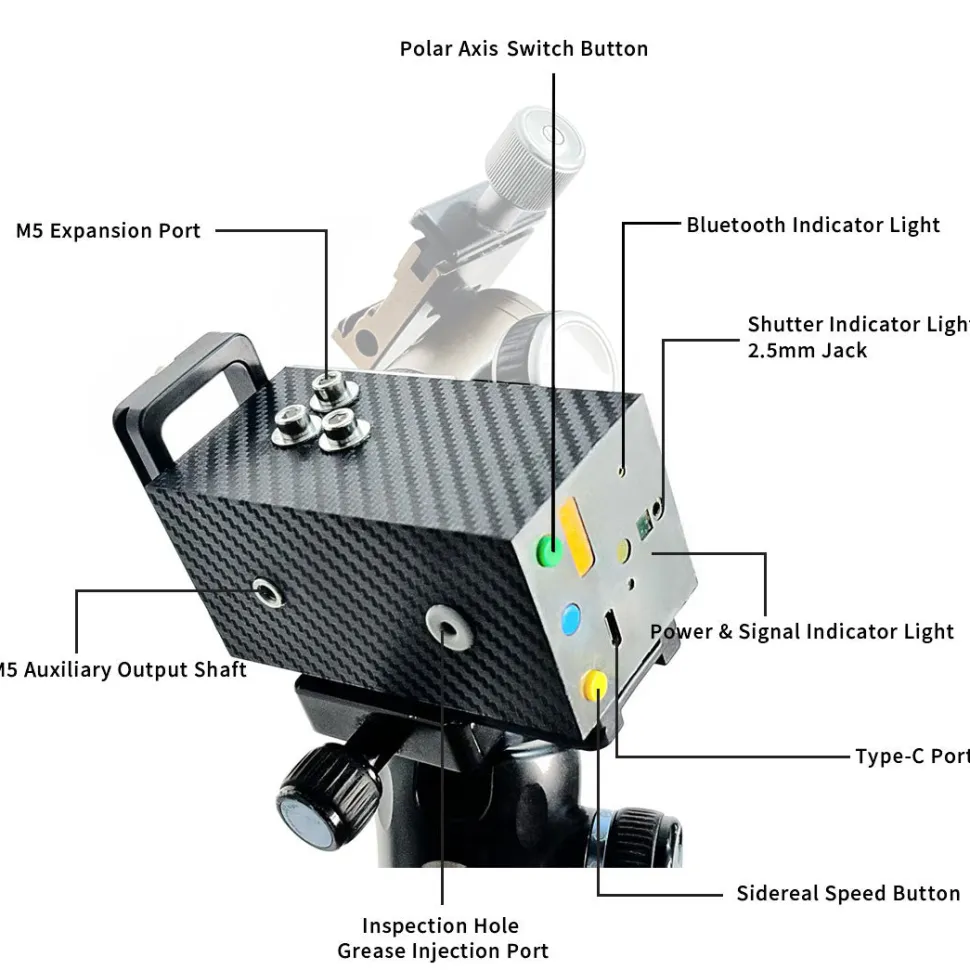

.Versatile Mounting Options: Main shaft 1/4″ thread and secondary M5 thread, bottom L-shaped quick-release plate with reversible orientation, plus top M5 expansion port compatible with 50 mm K50 quick-release plates and multiple gimbal heads.

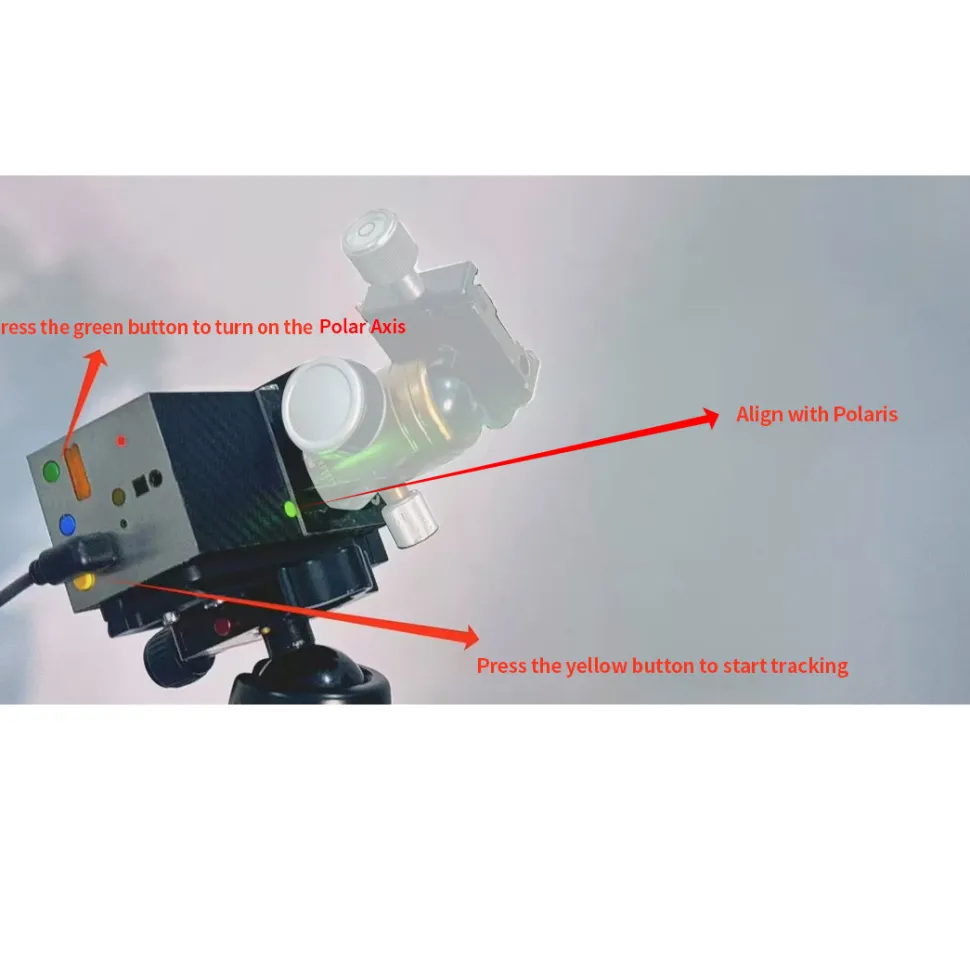

.Intelligent Control System: Built-in Bluetooth, automatic and linked shutter modules. Android app adjusts rotation speed, shutter, and exposure; iOS users can change speed via infrared remote. Features include timed power-off, custom speeds, north/south hemisphere tracking, and preset-stellar, solar, or lunar tracking rates.
.Reliable Long-Exposure Tracking: Real-world tests show stable single-frame exposures of up to 24 minutes at 14 mm, 17 minutes at 20 mm, 14 minutes at 24 mm, 10 minutes at 35 mm, 7 minutes at 50 mm, 4 minutes at 85 mm, 2 ½ minutes at 135 mm, 1 ½ minutes at 200 mm, and 1 minute at 300 mm even with coarse polar alignment.
.Complete Kit & 2-Year Warranty: Includes all required accessories and full after-sales support for worry-free astrophotography sessions.
Note:
During the calibration process before shooting, the equatorial mount should not be pointed at people.

Specifications:

.Material: Stainless Steel + Electronic Components
.Product Weight: 200g
.Package Weight: 300g
.Product Dimensions: 5 x 5 x 10cm
.Package Dimensions: 10 x 10 x 15cm
.Packing: Graphic Carton
.Ages: 16+

Packing List:

.Equatorial Mount *1
.Type-C Power Cord *1
.Wrench *2
.1/4 to 3/8 Conversion Screw
.Anti-Collison Storage Bag *1
.Free Mini Ball Table *1
