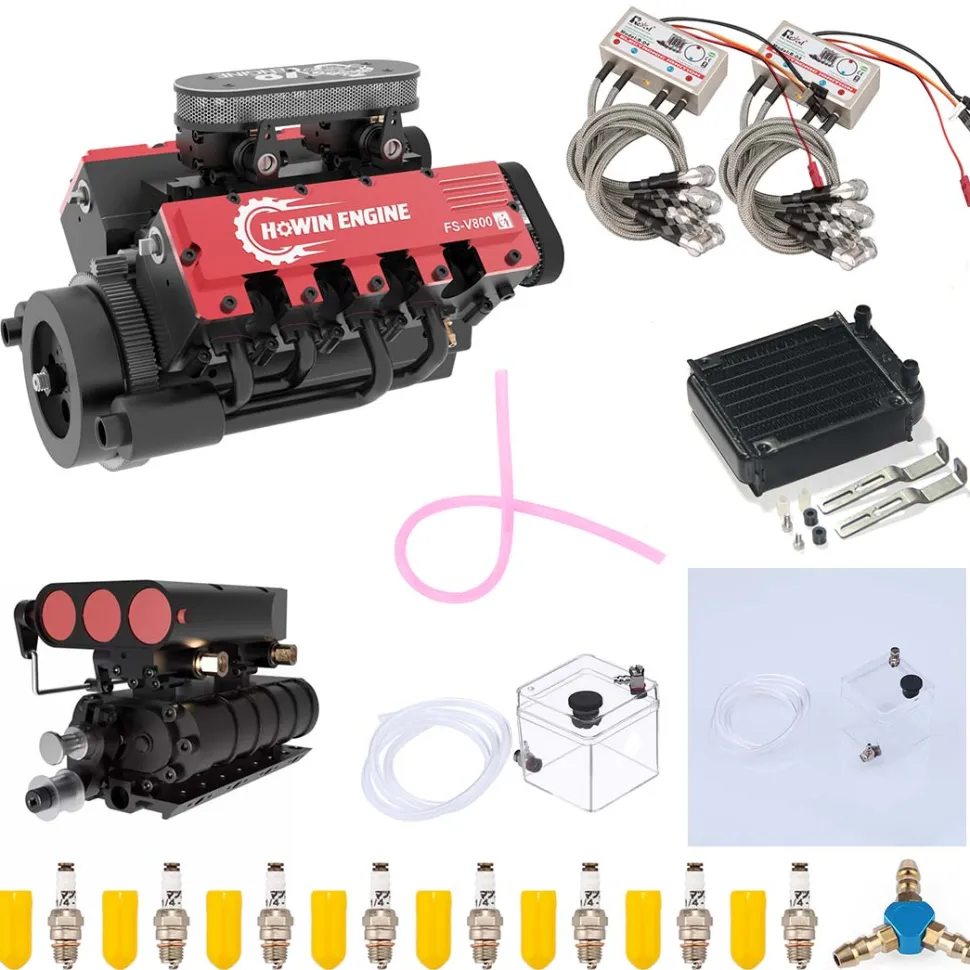

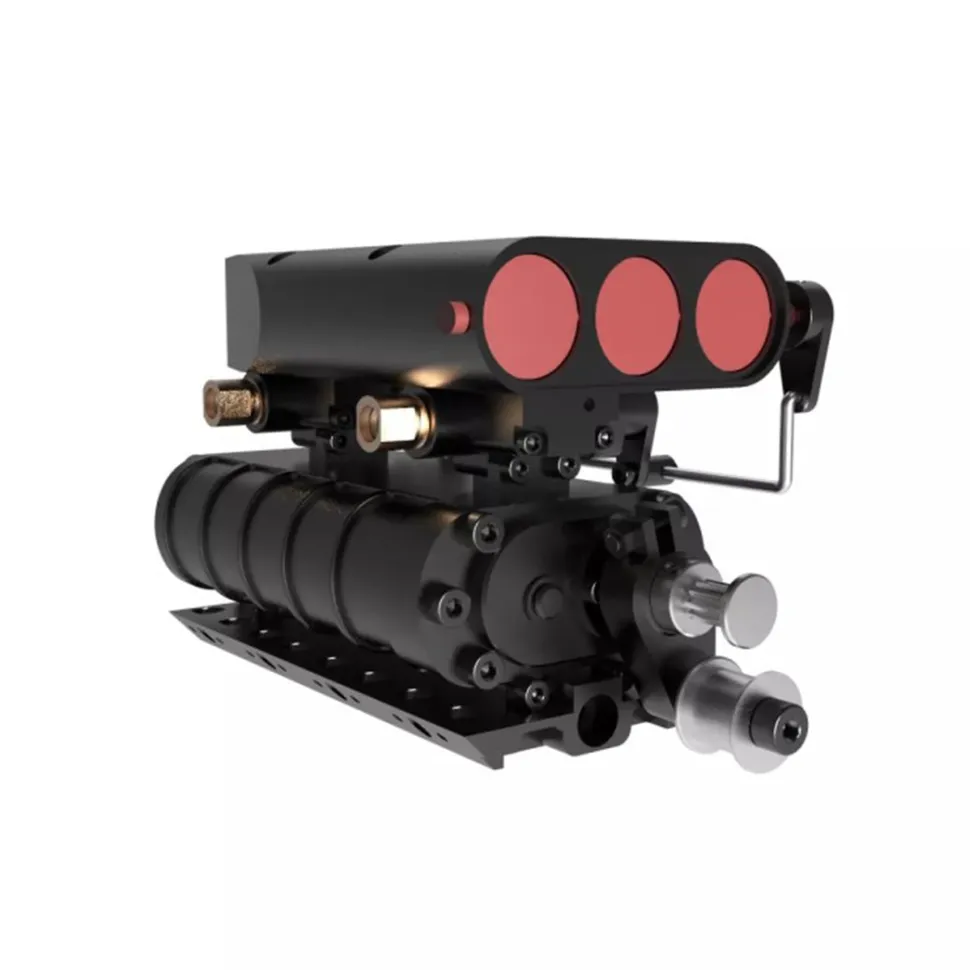

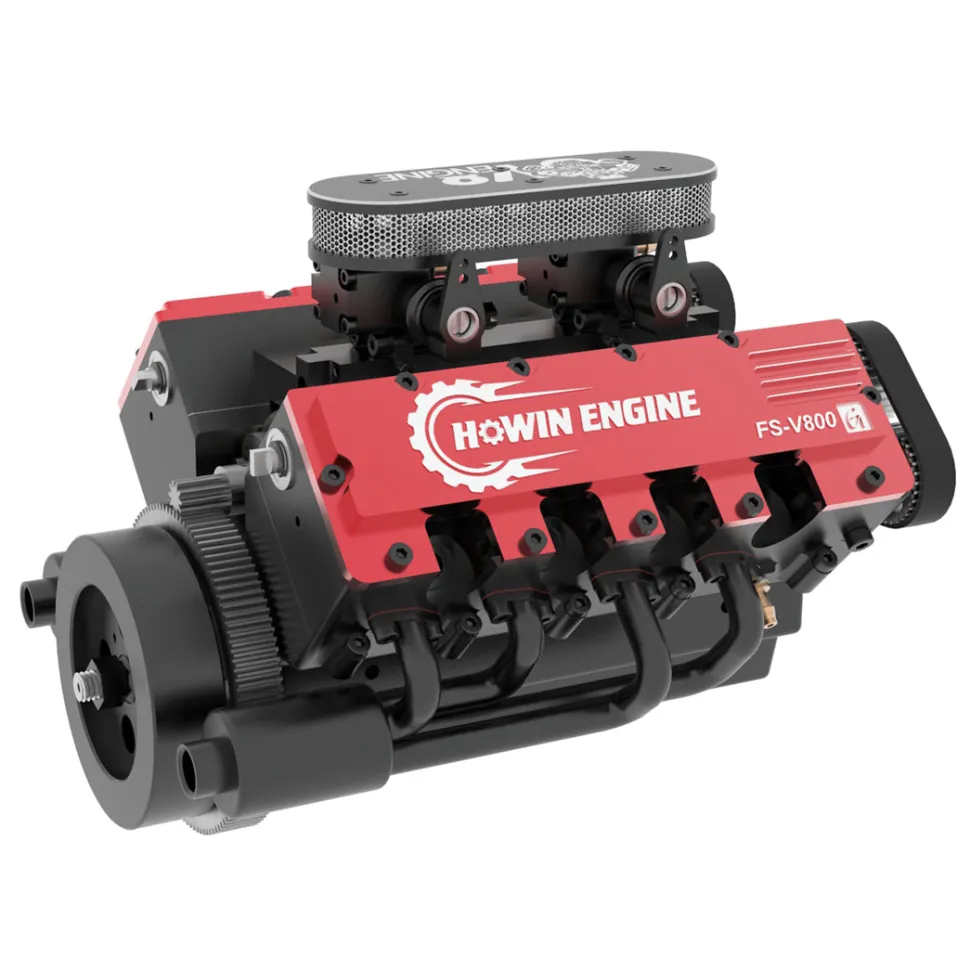

TOYAN V8 Engine FS-V800G 28cc Gasoline Engine Model Kit with Supercharger CDI Ignition Accessories That Works

TOYAN V8 Engine FS-V800G 28cc Gasoline Engine Model Kit with Supercharger CDI Ignition Accessories That Works

Find more , please click !

Discover more different on enginediy, please click !

Features:

.Miniature & Simulated: The 1/10 scale realistic miniature V8 internal-combustion engine with racing-like appearance and red sport element is authentically simulated.
.Long Stroke: Take long stroke as the engine design blueprint, it effectively provides higher torque. And the customized flexible oil seal ensures excellent sealing performance in high speed operation.

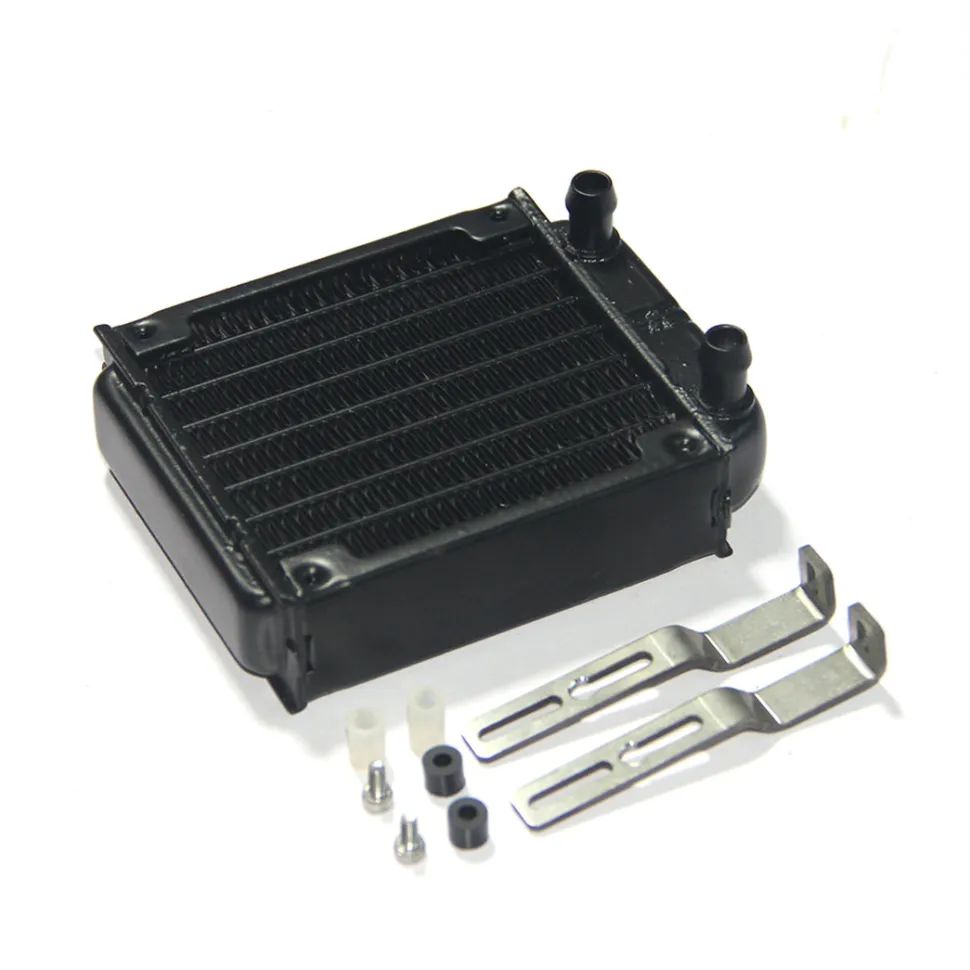

.Mechanical Water Cooling: The engine is built in a mechanical water cooling pump whose power derives from the crankshaft, which provides circulation power for the coolant and is able to combine the cooling fan for strengthened self-cooling performance.
.Precise Rocker Arm: With alloy rocker arm and independent intake & exhaust design, the valve switch operation will be more accurate.
.Integrated Crankshaft Processing: Designed with 90 degree cruciform crankshaft structure, three-section support, bearing at both ends and middle bearing bush, the engine allows more smooth operation and more sensitive acceleration response with up to 12500rpm.
.Dual Synchronous Belt Pulley: The timing structure of dual synchronous belt pulley greatly reduces the risk of gear jumping in high speed operation.
.Accurate Carburetor: Enjoy more accurate adjustment, more sensitive throttle response and more stable performance thanks to the brand new dual carburetor with pump.
.Integrated Exhaust Manifold: The small all-metal integrated exhaust manifold shaped by difficult processing technology makes V8 engine sound more powerful.
.Lightweight: The compact design makes the product perfectly compatible with RC models, drastically improving the unit power output ratio.
.DIY: Crafted from ultra-precise components, the engine model gives strong mechanical sense, enables smooth assembly experience and provide users with fun, helping to build their own V8 engines.
.Wide Applications: The product makes a superb desktop power engine model to play, a tool for RC model cars or boats modification, a teaching aid for physical mechanical experiments and a high-end holiday gift for model enthusiasts.
.Note: The engine is KIT component version, and ignition starting parts and water cooling parts need to be purchased separately. Please follow the instructions carefully to avoid engine damage or danger. For any questions, just contact us. Suitable for 14+ years old.

Specifications:

.Material: Metal
.Model: FS-V800
.Form: KIT parts version
.Scale: 1/10
.Cylinder: V-type eight cylinder
.Stroke: four stroke
.Displacement: 28(3.5*8)cc
.Core: 16.67mm
.Stroke: 17.00mm
.Angle: 90°
.Speed: 1800-12500rpm
.Power: 4.35ps@11200rpm
.Cooling Mode: water cooling
.Starting Mode: electric (including starting motor)

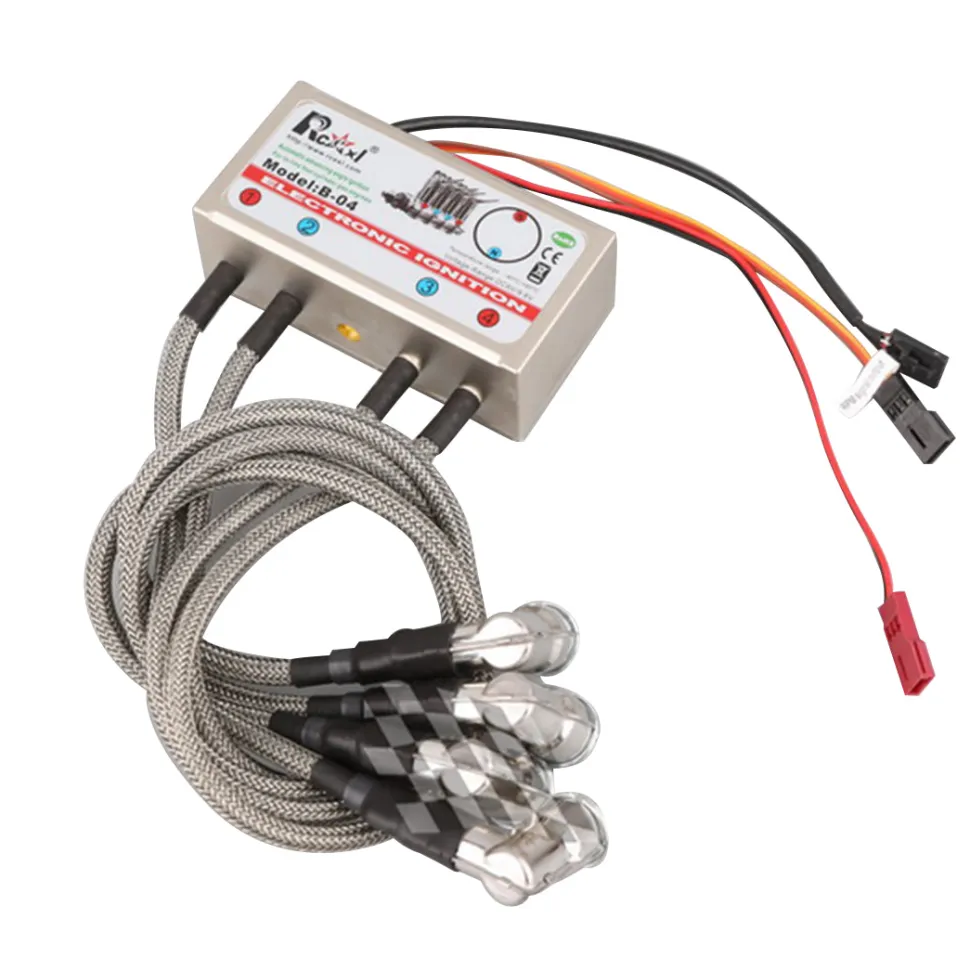

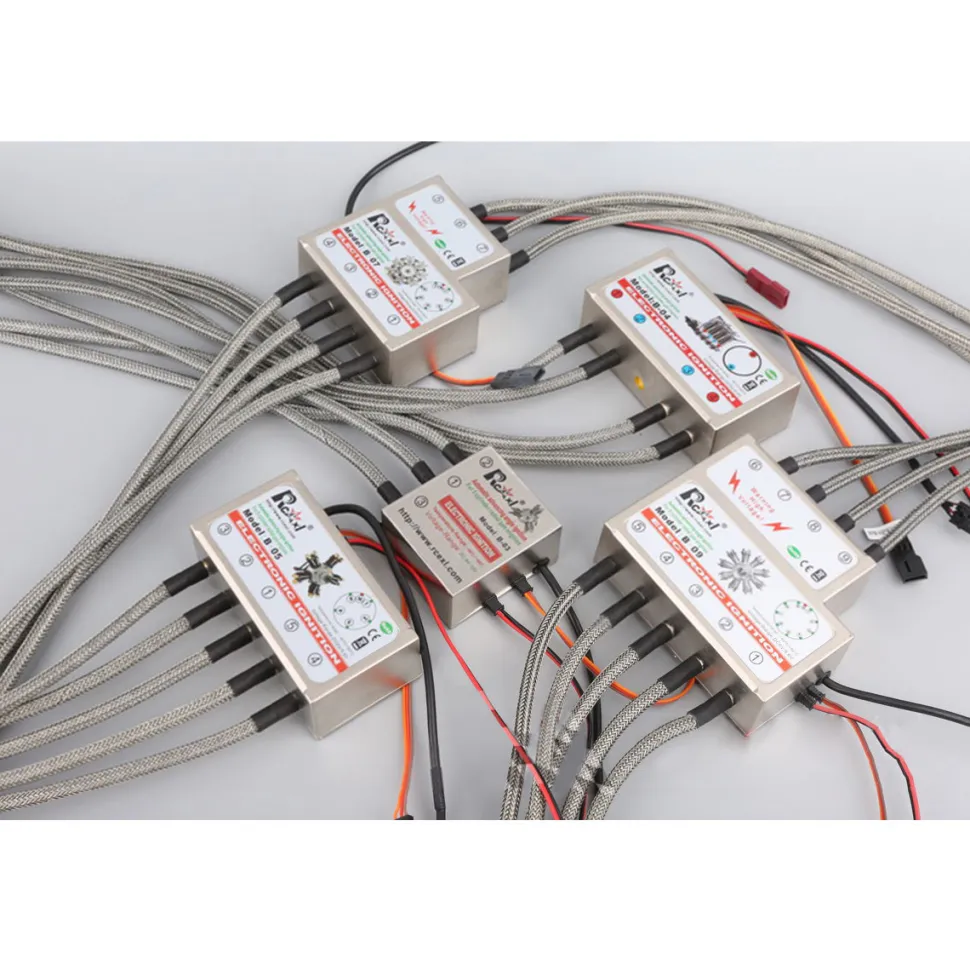

.Ignition Mode: 2 four-in-one (or eight-in-one) stabilized ignition modules

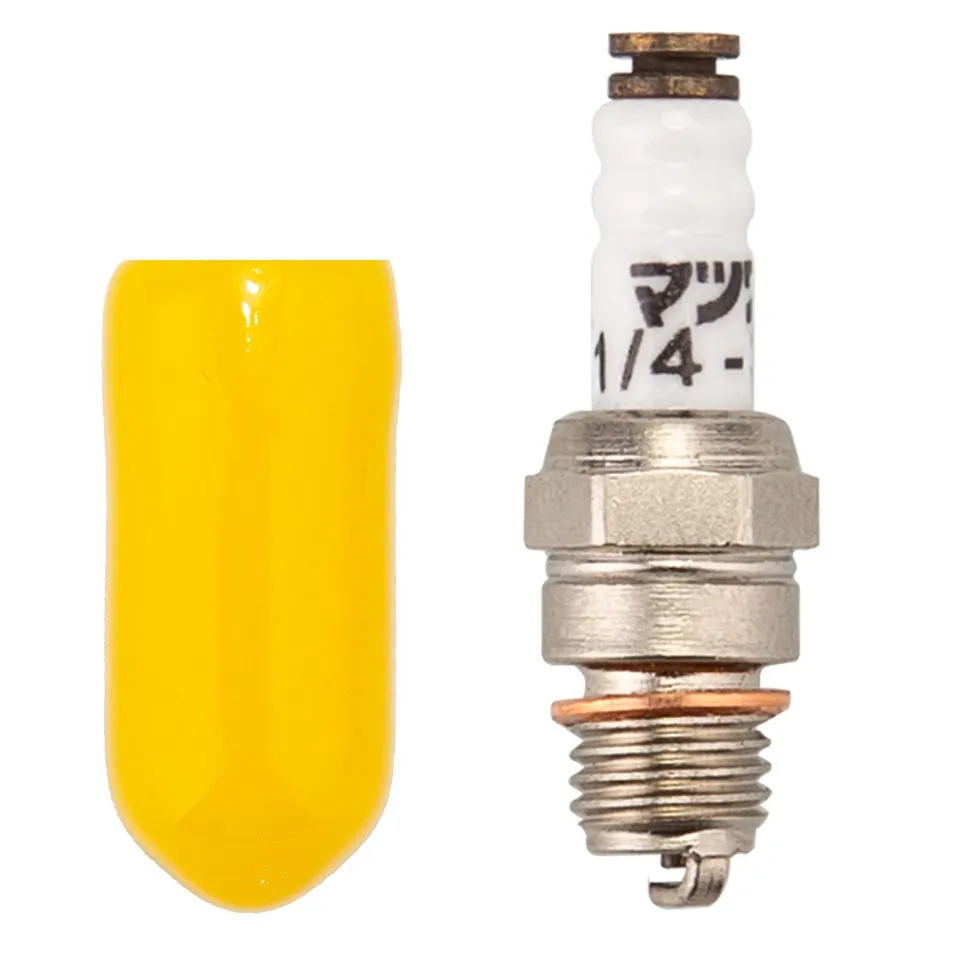

.Type of Electric Plug: F-type four-stroke electric plug
.Lubrication Mode: splash lubrication (add a small amount of grease on the cam)
.Fuel Type: 20-25% nitro fuel
.Starting Voltage: 7.4V lithium battery (not included)
.Product Dimensions: 12.34 x 3.2 x 12.73cm
.Product Weight: 2050g
.Package Dimensions: 17 x 15 x 4cm
.Package Weight: 2950g
.Packing: Bamboo Gift Box
